Vetus M4.35 Marine Inboard Engine

Vetus M4.35 Marine Inboard Engine

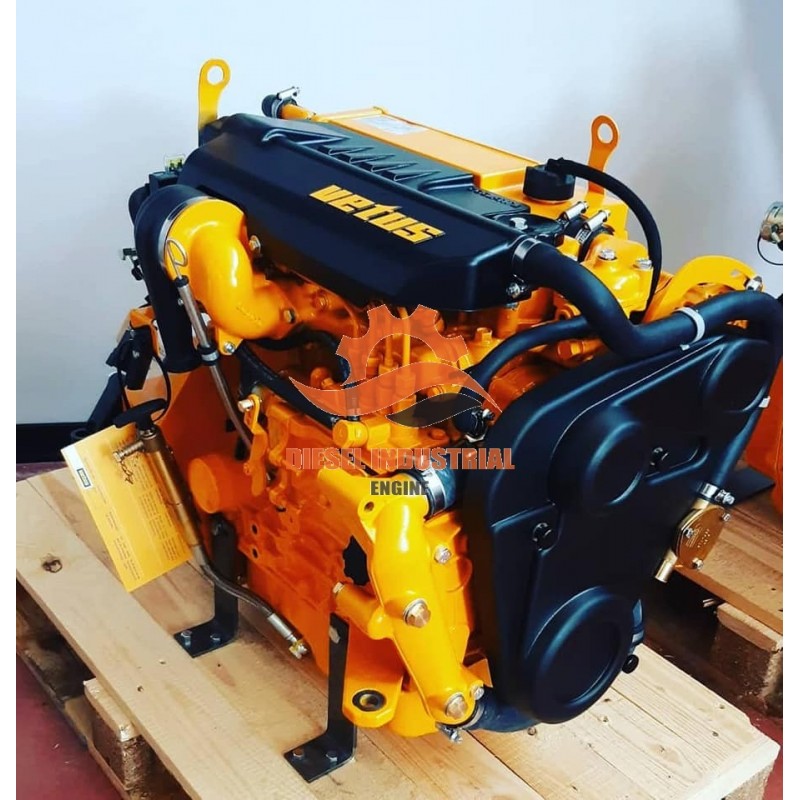

The new Vetus Mitsubishi M4.35 is a superbly quiet, compact and reliable 33hp, 4 cylinder marine diesel inboard engine. The model shown here is the inter-cooled version with pre-fitted ZF12M gearbox with a 2:1 ratio - ideal for small sailboats.

Simple to install - and easy to maintain, with all service items grouped on one side. The M4.35 ships with an attractive, waterproof key-switch panel (4m extendable hard-wired loom) with warning lights for low oil pressure, high water and exhaust temperature.

Specifications:

• Model : M4.35
• Stroke : 92mm
• Bore : 78mm
• Capacity : 1758cc
• Number of Cylinders : 4
• Compression Ratio : 22:1
• Firing Order : 1-3-4-2
• Alternator : 12v 110A
• Max Output at Flywheel/Propshaft : 24.3kW — 23.6kW
• Maximum RPM : 3000
• Torque at Max RPM : 83.8Nm
• Fuel Consumption : 252 g/k.W.h
• Gearbox & Ratio : ZF12M 2.0:1
• Dry Weight (inc Gearbox) : 180kg
• Fuel pump lift height : 1.5m
• Calorifier Connection : Optional Kit
• Warning Lights/Audible Alarms : Oil pressure, temperature (fresh & raw), charge current
• Cooling System : Indirect Sea-Water cooling
