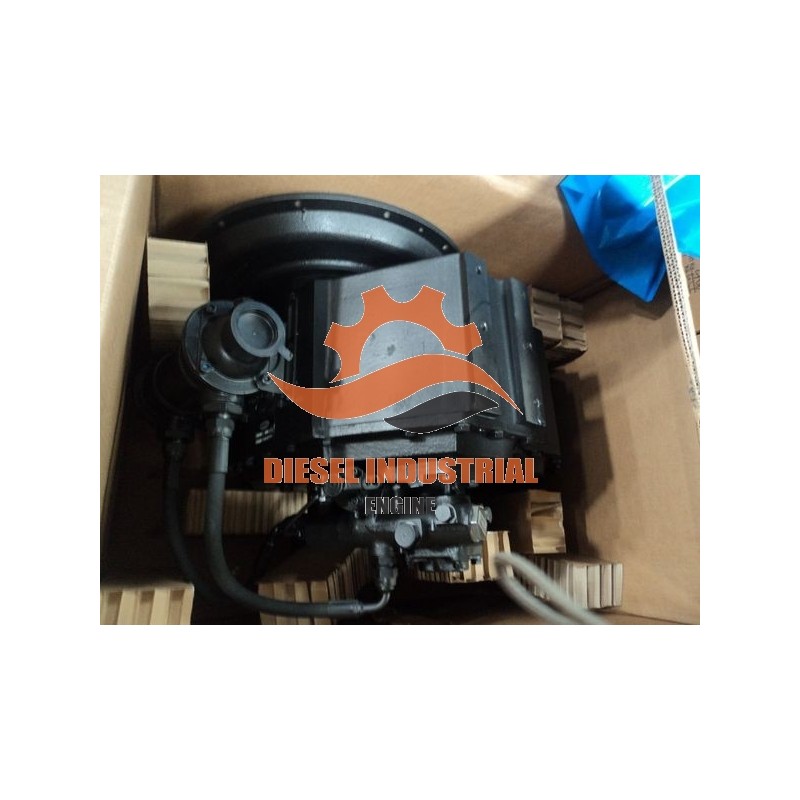

Twin Disc Technodrive TM 200B Gearbox
$3,400.00
Sell New Twin Disc Technodrive TM 200B Gearbox
Twin Disc Technodrive TM 200B Gearbox
The high-quality marine gearbox Twin Disc Technodrive TM 200B gearbox manufactured in Italy is equipped with conical clutches hydraulically operated, actuated by a servo-system; gears are specially constructed for quiet operation and bearings are amply proportioned. This model is available for a wide range of marine diesel engines.
The gearbox TM 200B is equipped with multiple-disc clutches hydraulically operated. The housing is built with cast-iron and gears are of high quality alloy steel, casehardened and hardened. All parts are widely sized for continuos duty. The clutches and gears are properly constructed to transmit the full power, with same ratio, forward and reverse running, both direction.
Maximum application power (Kw):
1800 rpm ----> 115 Kw / 154 Hp
2100 rpm ----> 134 Kw / 184 Hp
2400 rpm ----> 153 Kw / 206 Hp
Maximum engine speed: 2600 rpm
Dry weight: 235 Kg
Oil quantity: 131 ltr
| Gearbox model | Ratio | Transfer ratio “A” | Transfer ratio “B” |
| TM 200B Gearbox | 3,60 | 3,60:1 | 3,60:1 |
| 4,48 | 4,48:1 | 4,48:1 |
Factory Warranty: 2 Years
Technodrive TM 200B
