Sell New Twin Disc Technodrive TM 170 Gearbox

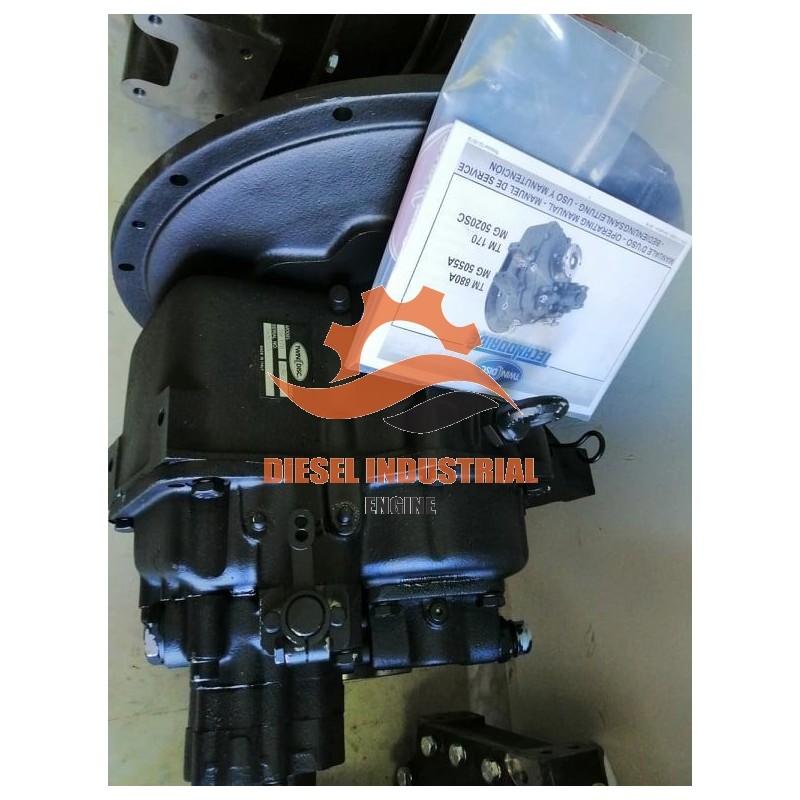

Twin Disc Technodrive TM 170 Gearbox
The high-quality marine gearbox Twin Disc Technodrive TM 170 gearbox manufactured in Italy is equipped with conical clutches hydraulically operated, actuated by a servo-system; gears are specially constructed for quiet operation and bearings are amply proportioned. This model is available for a wide range of marine diesel engines.
The gearbox TM 170 is equipped with multiple-disc clutches hydraulically operated.The clutches and gears are properly constructed to transmit the full power, with same ratio, forward and reverse running, both direction.
Maximum application power (Kw):
Pleasure: 2600 rpm ----> 204 Kw / 3300 rpm ----> 257 Kw
Intermediate: 2100 rpm ----> 134 Kw / 2500 rpm ----> 159 Kw
Continuos: 1800 rpm ----> 104 Kw / 2400 rpm ----> 138 Kw
Maximum engine speed: 4000 rpm
Dry weight: 75 Kg
Oil quantity: 2.8 ltr
| Gearbox model | Ratio | Transfer ratio “A” | Transfer ratio “B” |
| TM 170 Gearbox | 1,50 | 1,50:1 | 1,50:1 |
| 2,04 | 2,04:1 | 2,04:1 | |
| 2,50 | 2,50:1 | 2,50:1 | |
| 2,94 | 2,94:1 | 2,94:1 |
Factory Warranty: 2 Years
Technodrive TM 170
