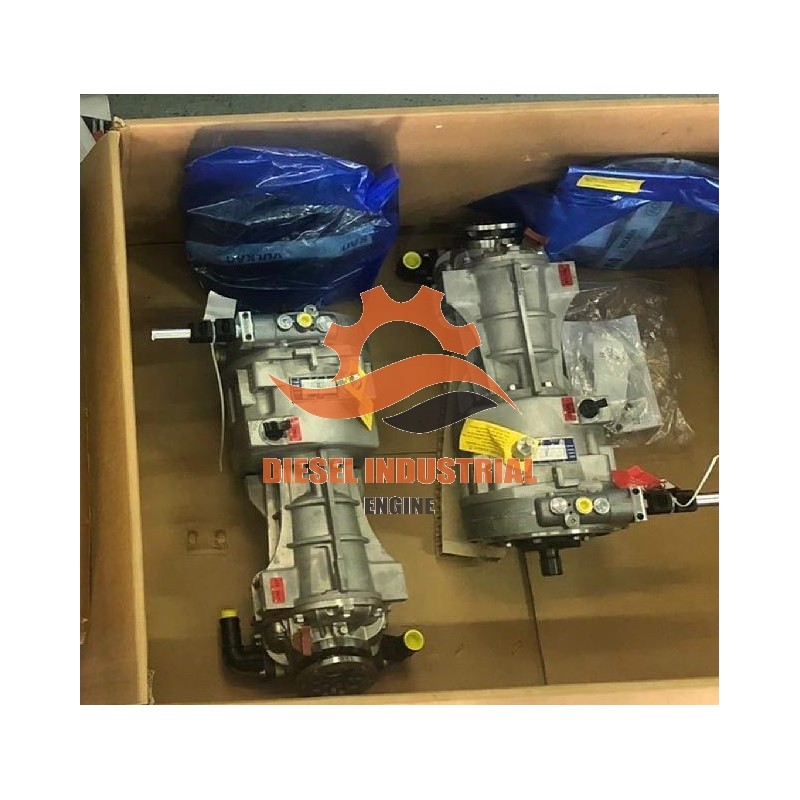

ZF 48IV Marine Transmission Gearbox

ZF 48IV Marine Transmission Gearbox

• 1,462:1
• 1,727:1
• 1,950:1

Features

• Lightweight and robust aluminum alloy casing (sea water resistant)
• Case hardened and precisely ground gear teeth for long life and smooth running
•  Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead
• B/W connection integrated with casing
•  Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable
• The reversible oil pump makes the gearbox suitable for use with right hand or left hand rotation engine
•  Replaceable oil filter
•  Total oil content is 3 liters: TWO (2) liters in the FORE part, and only ONE (1) in the AFT part (Vee-drive unit)
•  ZF 48 IV is created by the summary of ZF 63C (FORE) with a Vee-drive unit (AFT). The FORE part needs an optional oil
• cooler, meanwhile the AFT part has an Integrated Oil Cooler

Owner’s manual included. Sold by a ZF dealer with full warranty. Does not come with any accessories.
