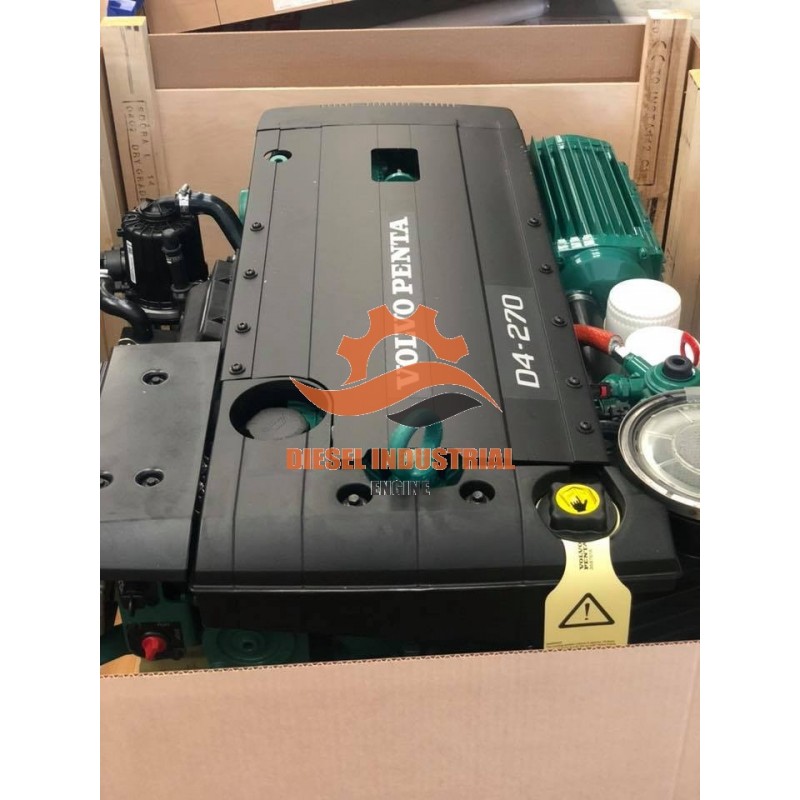

Volvo Penta D4 270 Inboard Diesel Engine

Gear box
- Gear box with matched drop center and 8° down angle for compact installation and mini-mum propeller shaft angle. V-drive available.
- Bevel gears which results in smooth running at all speeds
- Hydraulically operated clutch for smooth shifting
- Electrical shifting performed by electromagnetic valves
- When under sail propeller shaft can rotate 24 hours without engine start
- Seawater-cooled oilcooler
- Low speed as option

Option
• U.S.C.G./MED (SOLAS)

Technical Data:

Product designation : D4-270
Crankshaft power, kW (hp) : 199 (270)
Propeller shaft power, kW (hp) : 191 (260)
Engine speed, rpm : 3500
Engne displacement, l (in3) : 3.67 (223.7)
Engine configuration : in-line 4
Aspiration : turbo, after cooler
Rating : R4
Dry weight with ZF68,  kg (lb) : 580 (1279)
Dry weight with HS68IV, kg (lb) : 610 (1345)
Dry weight with HS68A, kg (lb) : 580 (1279)
Dry weight with HS85A, kg (lb) : 605 (1334)
Ratio ZF68 : 2.783
Ratio HS68IV : 1.992 - 2.477
Ratio HS68A : 2.037 - 2.522
Ratio HS85A : 2.500
Voltage : 12V or 24V
Emission compliance : IMO NOx, EU RCD Stage II, US EPA Tier 3
Flywheel / flywheel housing : SAE10 /SAE4

Factory Warranty: 5 Years
